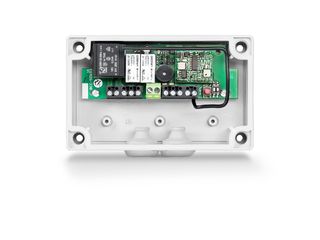

WRM-230B * Receiving module for activating window drives with 230 V DC
- Encrypted communication via rolling code with up to 74 trillion code combinations
- Simple teach-in via learn button with acoustic feedback
- Up to 85 radio transmitters can be taught
- Operating voltage 230 V AC
Application Areas
- Activation of GEZE 230 V window drives via the GEZE wireless program
- Surface-mounted installation
Technical data
WRM-230B | |
Dimensions | 130 x 80 x 35 mm |
Output | Electrical relay |
IP rating | IP54 |
Type of installation | Surface-mounted |
Connection type | Screw terminal |
Transmission frequency | 433.93 Mhz |
Service temperature | 0 - 50 °C |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
