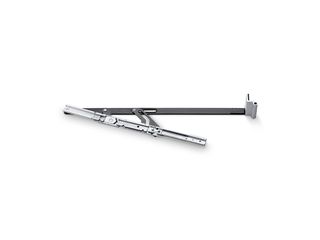

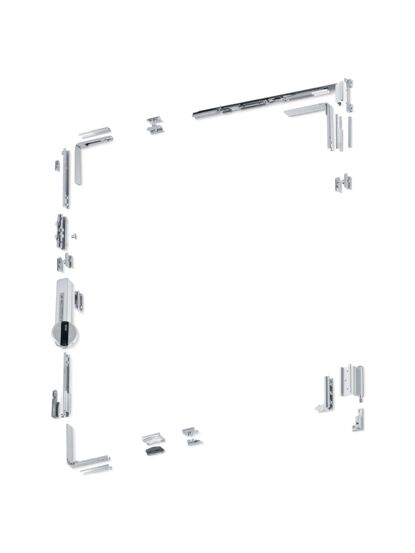

F 1200 * Cranked turn-and-tilt hardware system for manual ventilation of large and heavy windows
- Achieves the full opening width of 180 mm for all leaf heights
- Bottom opening width with variable adjustment

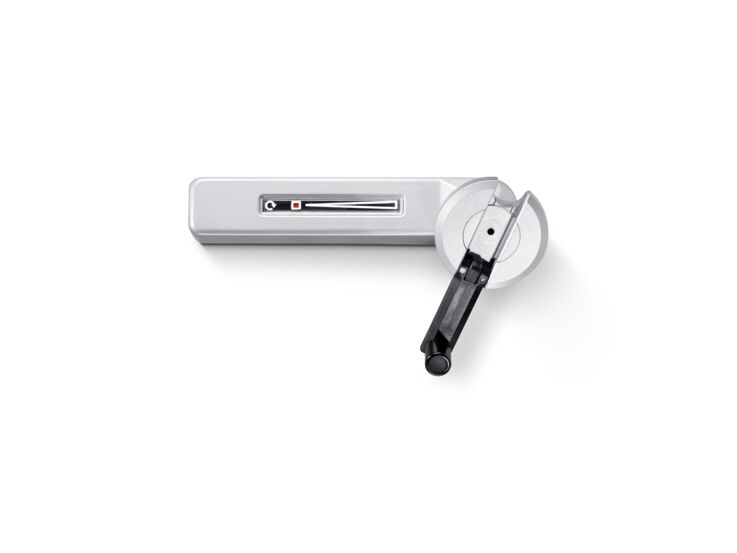

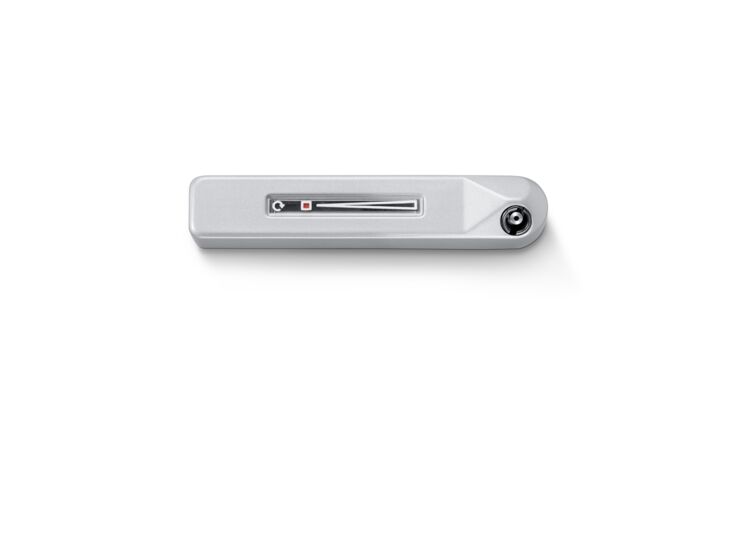

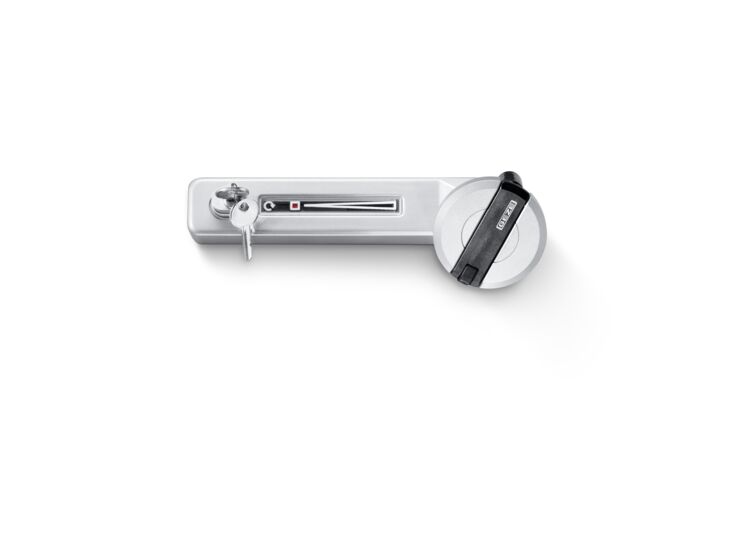

- Functional safety due to weight-independent crank handle activation with control display
- Suitable for leaf weights up to 200 kg
- Functional safety from friction coupling, to avoid overloading

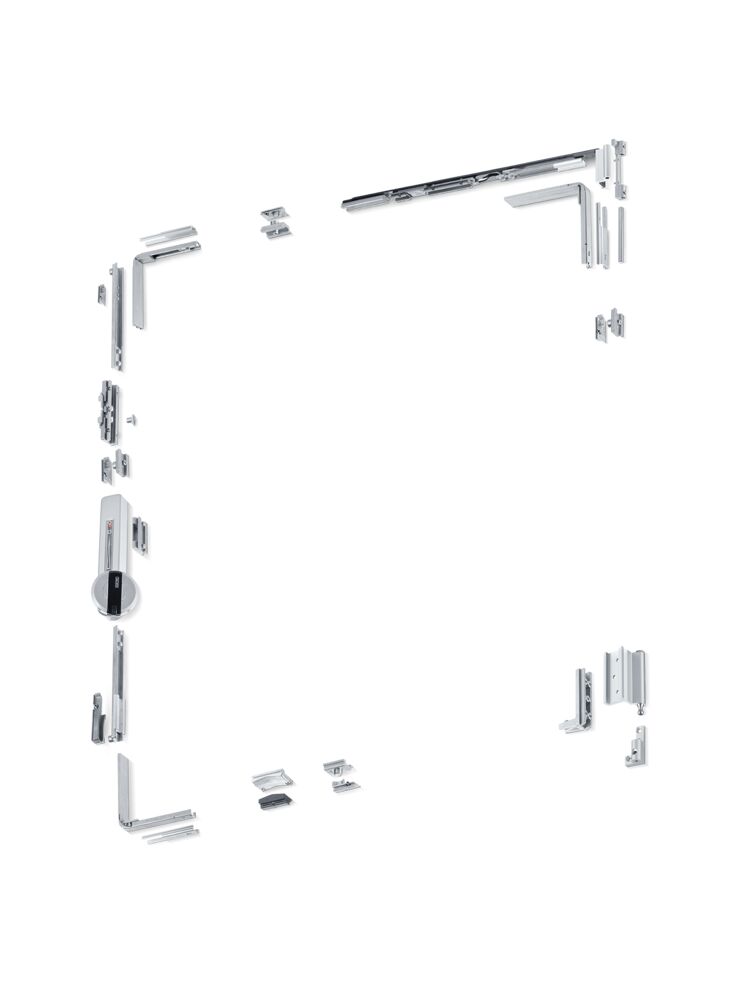

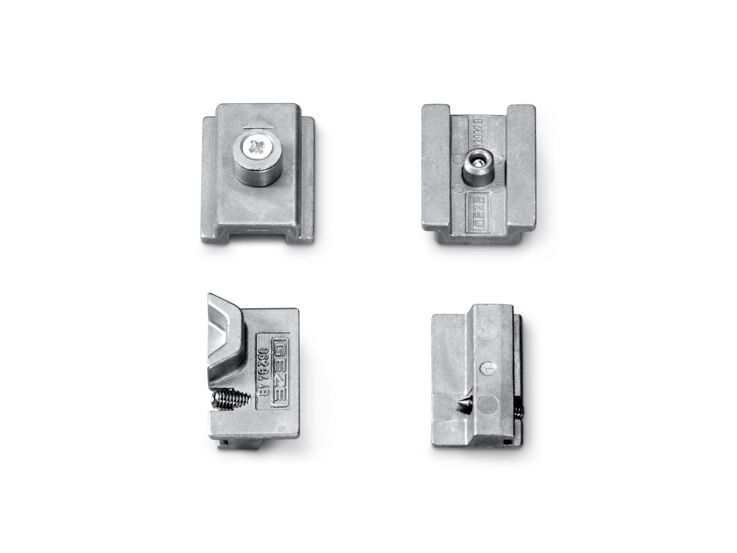

- Optional extendible fitting system with aid of vertical and horizontal central locking systems in accordance with leaf size
Application Areas
- Convenient and daily ventilation for rooms
- Ventilation with variable adjustment – from gap ventilation to the tilted end position
- Turn and tilt windows
- Installation on aluminium windows
- Leaf and frame installation
Technical data
| F 1200 | |
| Opening angle (max.) | 180 mm |
| Leaf width (min.) | 750 mm |
| Leaf height (min.) | 750 mm |
| Leaf weight (max.) | 200 kg |
| Fitting stroke | 81 mm |

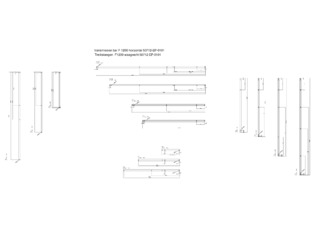

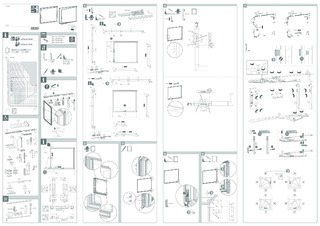

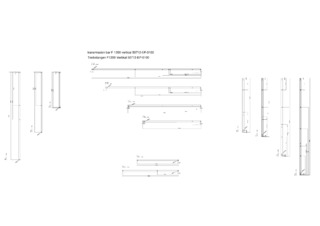

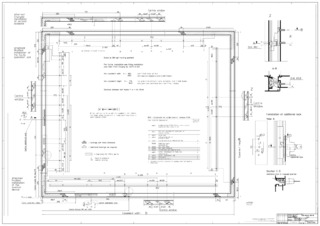

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH

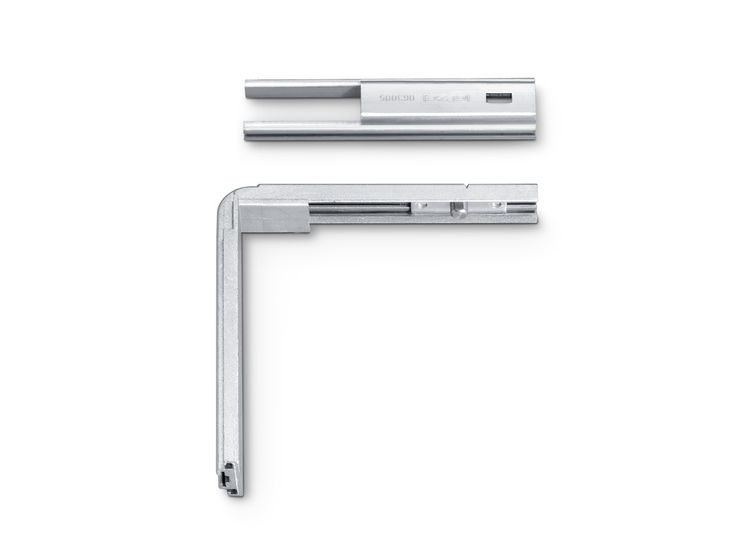

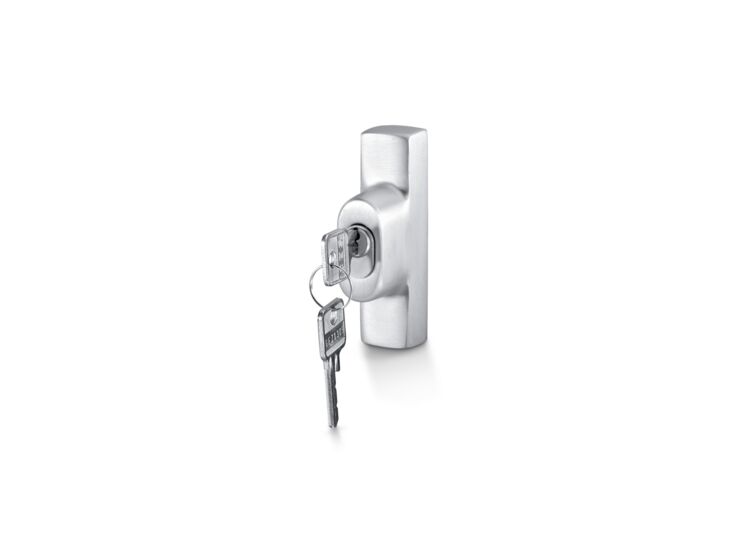

Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
