Link arm 1-leaf

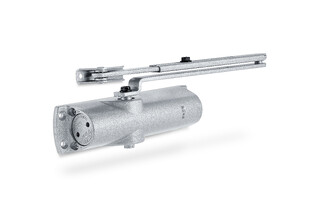

TS 1000 C * Overhead door closer with link arm for single leaf doors with a leaf width of up to 950 mm

  • Variable closing force of EN2 or EN3 by turning the bearing block around
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Contact us

TS 1000 C

Application Areas

  • Right and left single-action doors for interior use
  • Single-action doors up to 950 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 1000 C
Closing force in accordance with EN 1154 EN 2/3
Leaf width (max.) 950 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 215 mm
Width 44 mm
Height 52 mm
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Mounting position

Downloads

Variants & Accessories

Link arm TS 1500/1000 C
Parts

Link arm TS 1500 / 1000 C

Standard link arm

Product details
Overhead door closer TS 1000 C
Parts

Closer body TS 1000 C

Basic body for overhead door closer with link arm EN 2/3

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
