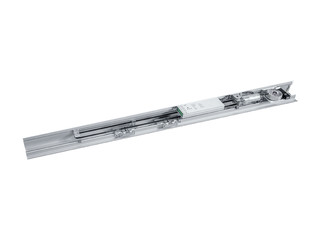

ECdrive 90 Kit * Automatic linear sliding door system for doors with a leaf weight of up to 90 kg

GEZE ECdrive 90
  • Door control unit (DCU) equipped with self-learning function, helps implement intelligent operation
  • Operation and parameter setting for the DCU via Bluetooth over WeChat
  • Parameter setting and troubleshooting possible directly on the DCU without additional service tool
  • Very smooth-running, low-wear drive solution
  • The roller carriage has an anti-tip function and is easy to install and adjust
  • Rechargeable battery for emergency opening and closing in case of a power failure is available as an option
Contact us

ECdrive 90 Kit

Application Areas

  • Single and double leaf sliding door systems
  • Interior and exterior doors with high access frequency
  • Complete solution for entrance areas with vestibule
  • Opening widths from 700 to 3000 mm possible

Technical data

ECdrive 90 Kit
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Depth 135 mm
Leaf weight (max.) 1-leaf 90 kg
Leaf weight (max.) 2-leaf 180 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 2-leaf 900 mm - 3000 mm
Service temperature -20 - 55 °C
IP rating IP20
Standard conformity EN 61000, 2011/65/EU

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
