ECdrive

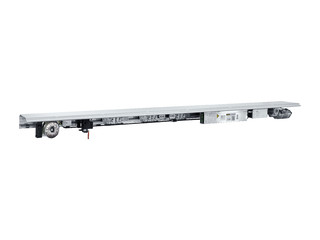

ECdrive T2 plus * Automatic linear sliding door system for doors up to 140 kg leaf weight
- Rounded cover in attractive GEZE design for highest design requirements
- With double roller carriage up to 140 kg leaf weight permitted
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Freely configurable inputs and outputs for different functions
- Rechargeable battery for emergency opening and closing in case of a power failure is available as an option
- Self-cleaning roller carriage reduces maintenance work and costs
Application Areas
- Single and double leaf sliding door systems
- Interior and exterior doors with high access frequency
- Complete solution for entrance areas with vestibule
- Opening widths from 700 to 3000 mm possible
- Door leaf weight of up to 140 kg per leaf

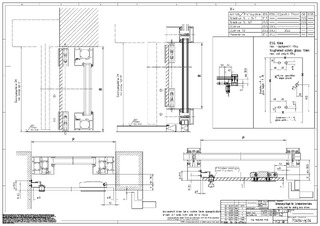

Installation situations in reference objects and videos
Technical data
| ECdrive T2 plus | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| Framed leaf (on site) | Yes |
| Wooden leaf (on site) | Yes |
| Depth | 171 mm |
| Leaf weight (max.) 1-leaf | 140 kg |
| Leaf weight (max.) 2-leaf | 140 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 900 mm - 3000 mm |
| Service temperature | -15 - 55 °C |
| Standard conformity | DIN 18650, EN 16005, DIN EN ISO 13849: Performance Level D |
Downloads
ECdrive T2 plus
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
