Boxer 1-leaf

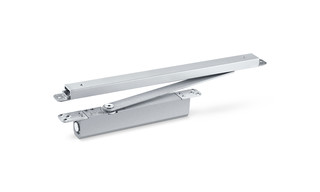

Boxer F3 * Integrated door closer for single leaf doors up to 950 mm leaf width
- Closing force of EN3
- Can be used for right and left hand doors without conversion
- Door closer is embedded in the door leaf and frame and fulfils the highest design demands
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Application Areas
- Right and left single-action doors
- Single-action doors up to 950 mm leaf width, for door weight up to 130 kg
- For door leaf thicknesses from 40 mm
Technical data
| Boxer F3 | |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Leaf weight (max.) | 130 kg |
| Opening angle (max.) | 120 ° |
| Identical design for DIN left and DIN right | Yes |
| Length | 240 mm |
| Width | 32 mm |
| Height | 45 mm |
| Closing force adjustable | No |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Safety valve againts overload | Yes |
| Hold-open function | Mechanical |
| Hold-open device can be overridden | Yes |
Downloads

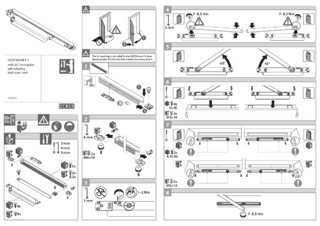

Set Boxer F3 mit Schiene 20,7 mm, mech.Feststelleinheit
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
